e28T-3 - L&L Pottery Kiln
SKU 1726_sku
$4 887.20
Sold out
Phase
Voltage
Product Details
Brand: L&L

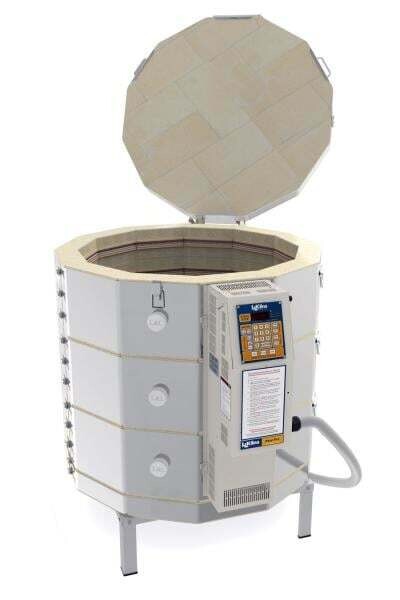

Model e28T-3 Easy-Fire Automatic Kiln with with Multi-Program Three-Zoned DynaTrol mounted in an easy-open cool-firing piggy-back control panel that is angled for easy viewing of control. Kiln comes with hard ceramic element holders, protected thermocouples, strong solid-top stand, easy-lift spring hinge, and solid peephole plugs. 28" diameter by 27" high (10.2 cubic feet). 3" K23 brick. NEMA 6-50 single phase or 15-50 three phase 6 foot power cord included. C-MET-us listed in the USA & Canada. Cone 10 for all three phase models- see below for single phase.
- Insulation: 3" K23 Firebrick
- Sections: Three 9" high sections
- Inside Dimensions: 28.00" Diameter x 27.00" High (71.12 cm Diameter x 68.58 cm High)
- Outside Dimensions: 35.00" Wide x 46.00" Deep x 74.00" High (88.9 cm Wide x 116.84 cm Deep x 187.96 cm High)
- Weight: 415 lbs (188 kg)
| Max Cone | Phase | Voltage | Watts | Amps | Fuse Size | Gauge Wire |
NEMA Receptacle Config. |
| 5 | 1 | 208 | 9,980 | 48 | 60 | 6 |
6-50 |
| 8 | 1 | 240 | 11,520 | 48 | 60 | 6 |
6-50 |
| 10 | 3 | 208 | 14,340 | 39.8 | 50 | 6 |
15-50 |
| 10 | 3 | 240 | 16,620 | 40 | 50 | 6 |
15-50 |
