e23T-3 - L&L Pottery Kiln
SKU 4215_sku
$4 202.50
Sold out
Phase
Voltage
Sold out
Product Details
Brand: L&L

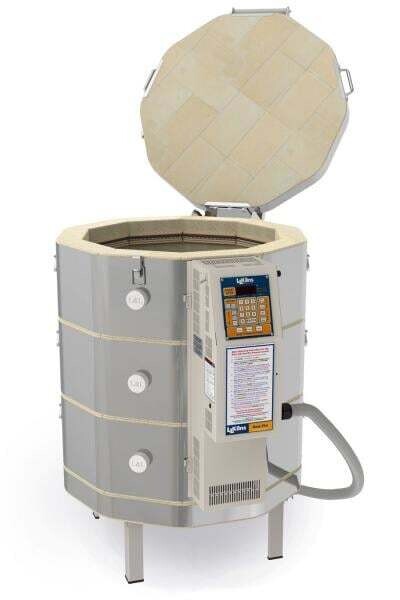

Model e23T-3 Easy-Fire Automatic Kiln with with Multi-Program Three-Zoned DynaTrol mounted in an easy-open cool-firing piggy-back control panel that is angled for easy viewing of control. Kiln comes with hard ceramic element holders, protected thermocouples, strong solid-top stand, easy-lift spring hinge, and solid peephole plugs. 22-3/8" diameter by 27" high (6.7 cubic feet). 3" K23 brick. NEMA 6-50 single phase or 15-50 three phase 6 foot power cord included. C-MET-us listed in the USA & Canada. Cone 10 for all voltages.
- Insulation: 3" K23 Firebrick
- Sections: Three 9" high sections
- Inside Dimensions: 22.30" Diameter x 27.00" High (56.642 cm Diameter x 68.58 cm High)
- Outside Dimensions: 30.00" Wide x 40.00" Deep x 68.00" High (76.2 cm Wide x 101.6 cm Deep x 172.72 cm High)
- Weight: 320 lbs (145 kg)
| Max Cone | Phase | Voltage | Watts | Amps | Fuse Size | Gauge Wire |
NEMA Receptacle Config. |
| 10 | 1 | 208 | 9,978 | 48 | 60 | 6 |
6-50 |
| 10 | 1 | 240 | 11,520 | 48 | 60 | 6 |
6-50 |
| 10 | 3 | 208 | 11,000 | 30.5 | 40 | 8 |
15-50 |
| 10 | 3 | 240 | 11,520 | 27.7 | 40 | 8 |
15-50 |
