e23S-3 - L&L Pottery Kiln
SKU 4765_sku
$3 485.00
Sold out
Phase
Voltage
Product Details
Brand: L&L

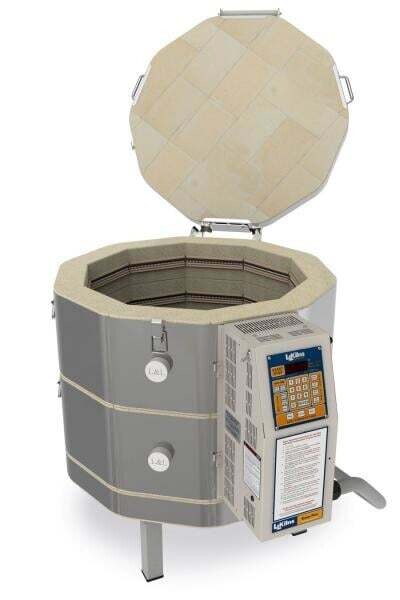

Model e23S-3 Easy-Fire Automatic Kiln with with Multi-Program Two-Zoned DynaTrol mounted in an easy-open cool-firing piggy-back control panel that is angled for easy viewing of control. Kiln comes with hard ceramic element holders, protected thermocouples, strong solid-top stand, easy-lift spring hinge, and solid peephole plugs. 22-3/8" diameter by 18" high (4.4 cubic feet). 3" K23 brick. NEMA 6-50 single phase or 15-50 three phase 6 foot power cord included. C-MET-us listed in the USA & Canada.
- Insulation: 3" K23 Firebrick
- Sections: Two 9" high sections
- Inside Dimensions: 22.30" Diameter x 18.00" High (56.642 cm Diameter x 45.72 cm High)
- Outside Dimensions: 30.00" Wide x 40.00" Deep x 59.00" High (76.2 cm Wide x 101.6 cm Deep x 149.86 cm High)
- Weight: 260 lbs (118 kg)
| Max Cone | Phase | Voltage | Watts | Amps | Fuse Size | Gauge Wire |
NEMA Receptacle Config. |
| 10 | 1 | 208 | 8,320 | 40 | 50 | 6 |
6-50 |
| 10 | 1 | 240 | 9,460 | 39.4 | 50 | 6 |
6-50 |
| 10 | 3 | 208 | 8,320 | 34.6 | 50 | 6 |
15-50 |
| 10 | 3 | 240 | 9,460 | 34.1 | 50 | 6 |
15-50 |
