e18T-3 - L&L Pottery Kiln
SKU 4750_sku
$3 329.20
Sold out
Phase
Voltage
Sold out
Product Details
Brand: L&L

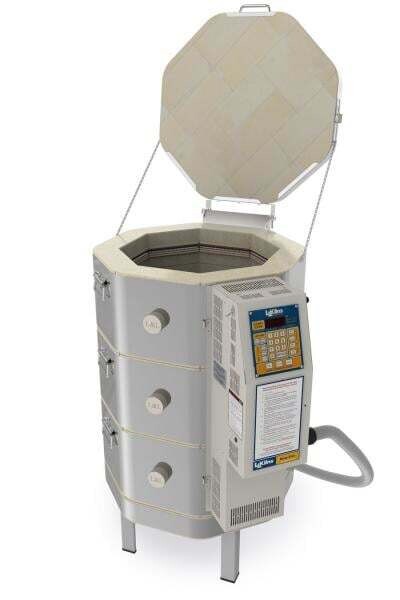

Model e18T-3 Easy-Fire Automatic Kiln with with Multi-Program Three-Zoned DynaTrol mounted in an easy-open cool-firing piggy-back control panel that is angled for easy viewing of control. Kiln comes with hard ceramic element holders, protected thermocouples, strong solid-top stand, and solid peephole plugs. 16-1/2" diameter by 27" high (3.7 cubic ft - 105 Liters). 3" K23 brick. NEMA 6-50 single phase or 15-50 three phase 6 foot power cord included. C-MET-us listed in the USA & Canada. Cone 10 for all voltages.
- Insulation: 3" K23 Firebrick
- Sections: Three 9" high sections
- Inside Dimensions: 16.50" Diameter x 27.00" High (41.91 cm Diameter x 68.58 cm High)
- Outside Dimensions: 28.00" Wide x 30.00" Deep x 63.00" High (71.12 cm Wide x 76.2 cm Deep x 160.02 cm High)
- Weight: 230 lbs (104 kg)
| Max Cone | Phase | Voltage | Watts | Amps | Fuse Size | Gauge Wire |
NEMA Receptacle Config. |
| 10 | 1 | 208 | 8400 | 40.4 | 60 | 6 |
6-50 |
| 10 | 1 | 240 | 8400 | 35 | 50 | 6 |
6-50 |
| 10 | 3 | 208 |
8400 |
23.3 | 30 | 8 |
15-50 |
| 10 | 3 | 240 | 8400 | 20.2 | 30 | 10 |
15-50 |
