e18M-3 - L&L Pottery Kiln
SKU 4739_sku
$2 738.80
Sold out
Phase
Voltage
Product Details
Brand: L&L

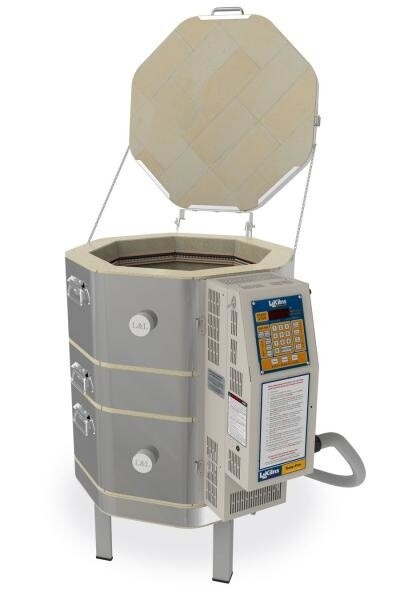

Model e18M-3 Easy-Fire Automatic Kiln with with Multi-Program Three-Zoned DynaTrol mounted in an easy-open cool-firing piggy-back control panel that is angled for easy viewing of control. Kiln comes with hard ceramic element holders, protected thermocouples, strong solid-top stand, and solid peephole plugs. 16-1/2" diameter by 22.5" high (3.2 cubic feet). 3" K23 brick. NEMA 6-50 single phase or 15-50 three phase 6 foot power cord included. C-MET-us listed in the USA & Canada. Cone 10 for all voltages.
- Insulation: 3" K23 Firebrick
- Sections: Two 9" high & One 4.5" high sections
- Inside Dimensions: 16.50" Diameter x 22.50" High (41.91 cm Diameter x 57.15 cm High)
- Outside Dimensions: 28.00" Wide x 30.00" Deep x 60.00" High (71.12 cm Wide x 76.2 cm Deep x 152.4 cm High)
- Weight: 210 lbs (95 kg)
| Max Cone | Phase | Voltage | Watts | Amps | Fuse Size | Gauge Wire |
NEMA Receptacle Config. |
| 10 | 1 | 208 | 8000 | 38.5 | 50 | 6 |
6-50 |
| 10 | 1 | 240 | 8000 | 33.3 | 50 | 6 |
6-50 |
| 10 | 3 | 208 | 8000 | 26.6 | 40 | 8 |
15-50 |
| 10 | 3 | 240 | 8000 | 23.1 | 30 | 10 |
15-50 |
