DL11-D - L&L Test Kiln

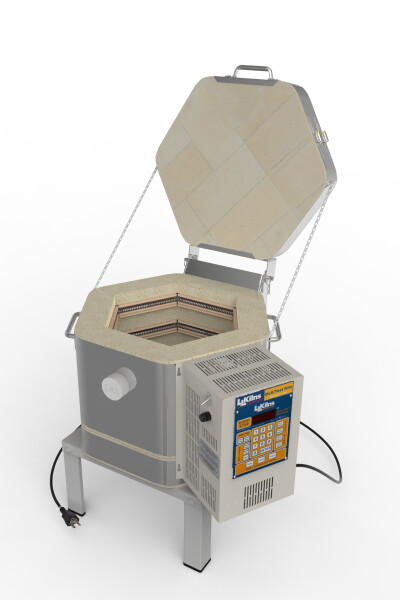

Model DL11-D Doll/Test Kiln with a DynaTrol Controller. Kiln comes with hard ceramic element holders, protected thermocouple, strong solid-top stand, and solid peephole plug. 11" Diam x 9" High (0.5 cu ft). 2-1/2" K23 brick. 120 volts, 15 amps. Includes NEMA 5-15 plug. Cone 5. (Not listed to UL499).

NOTE: The 120 volt versions should not be used for high production (more than once a week) to their maximum temperature range - the element life will not be acceptable under those conditions. 208 volt and 240 volt versions are rated to Cone 10 under high production conditions.

• Insulation: 2-1/2" K23 Firebrick
• Sections: One section
• Inside Dimensions: 11.00" Diameter x 9.00" High (27.94 cm Diameter x 22.86 cm High)
• Outside Dimensions: 24.00" Wide x 21.00" Deep x 40.00" High (60.96 cm Wide x 53.34 cm Deep x 101.6 cm High)
• Weight: 95 lbs (43 kg)
